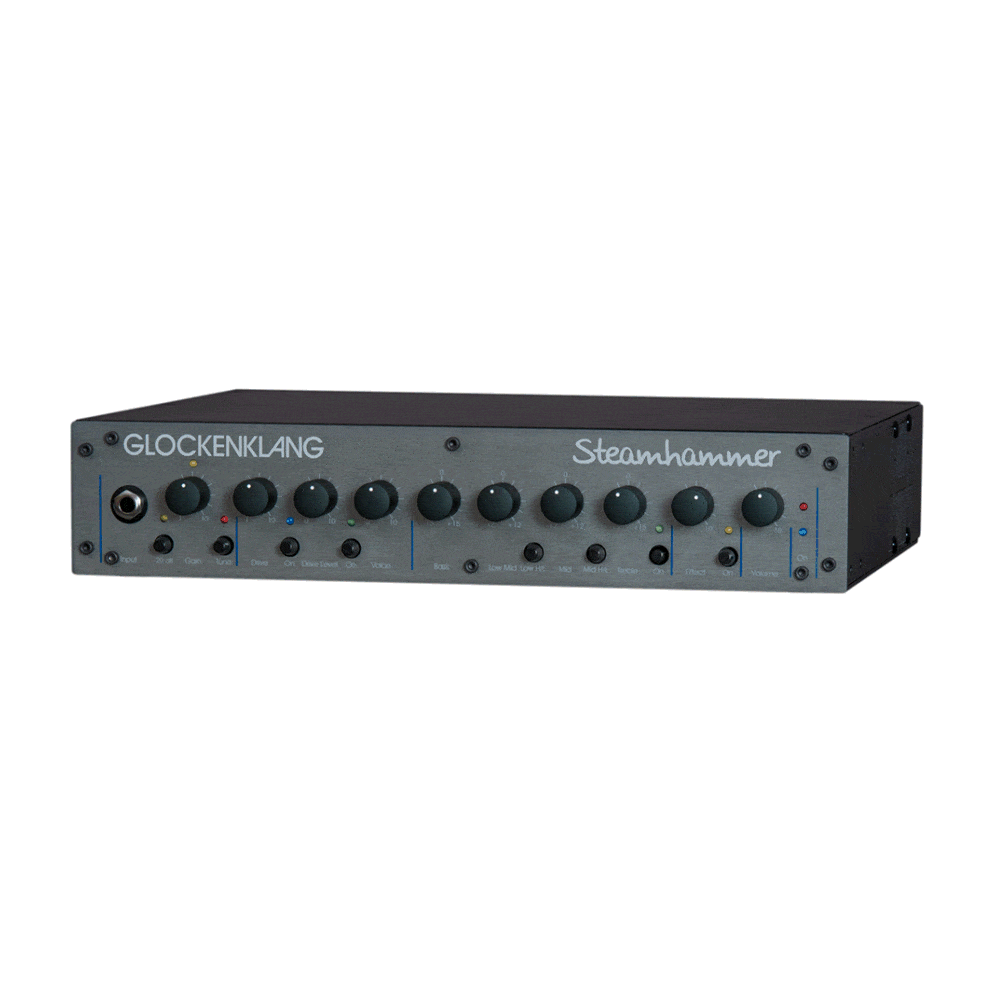

The Glockenklang SteamHammer Amp Head…..

The Steamhammer is Glockenklang’s next Class D amp. Like all other Glockenklang amps, it features a warm and dynamic sound up to full power. Class A input stage, foot-switchable Drive stage with Level pot and adjustable Voice filter, on-switchable 4-band eq with 2 frequency switchable Mids points, switchable effects-loop, mp3-player input, symmetrical, level-switchable DI-out, tuner out and phones output are the main features. 19″ rack-ears, Glockenklang gig bag are optional.

Dynamic – Musical – Power – Warmth – Drive section with Voice-filter – Lightweight



Download Owners Manual / Download Technical Data Sheet

Detailed Specifications:

Features:

High performance class D power amp section 700 watts / 4 ohms, 380 watts / 8 ohms,

switchable to 700 W / 2,7 ohms, 470 W / 4 ohms, 240 W / 8 ohms (switch at rear)

Drive section with Drive and Level pots, on-switchable Voice-filter adjustable, on-switchable (also by foot-switch)

Excellent 4-band equalization section with 2 x frequency switchable Mids, on/off switchable EQ section

LED overdrive indicator for pre amp

LED indicators for switch functions

High impedance class A input stage

Effect Return also usable as mp3 player and additional mixing input

Balanced DI out, switchable level

Tuner out

Phones out

Compact and robust design

Llightweight3.4 kg (7.5 lbs)

Inputs:

Input for instruments with normal level, switchable for instruments with higher level

Tone controls:

On / Off switchable 4-band EQ

Bass +15 dB 60 Hz, -15dB 20 Hz

Low Mid +/- 12 dB 150 / 240 Hz – switchable mid frequency

Mid +/- 12 dB 770 / 1.5 KHz – switchable mid frequency

Treble +/- 15 dB 8 KHz

 Effect loops

1 parallel effects loop, post eq, intensity controlled by effects section on the

front panel, foot-switchable, also usable as second, mixable input and mp3 input

 Dimensions:  320 x 260 x 63 mm, 12.6″ x 10.2″ x 2.5″ (1.5 rackspaces)

 Weight:           3.4 kg, (7.5 lbs)
